LABELER FOR VIALS, BOTTLES AND CANS

VRM series

Labelling machine for wrap around labelling

Basic concept of the system for bottle labelling and can labelling:


With the help of the fully automatic VRM labelling machine, different cylindrical or square products can be labelled quickly and precisely on the circumference - wrap-around labelling. The machine is therefore used in many industries ranging from pharmaceuticals to food and cosmetics. The VRM series is suitable for bottle labelling, can labelling, vial labelling or comparable containers such as jars or bottles. Several different formats can be covered simultaneously with one model.

The VRM-DS labeling system includes a 3-roll turning station and is used for a capacity of up to 60 products per minute. It is characterised by the highest labelling accuracy and can optionally align the containers by means of a weld seam, print mark or another feature before labelling (target labelling). The VRM-RB labelling system is used for larger quantities of up to 250 products per minute. With our label dispenser RAPID we guarantee the highest labelling accuracy in the range from +-0.2 mm to +- 0.5 mm. For labelling small batches or smaller batches we recommend our semi-automatic labelling machine TNC-DS for wrap-around labelling.

Like all labelling systems from our company, this model has a modular design and can be expanded at any time. The advantages such as low set-up costs, high availability and multiple use in different production lines are obvious. The adaptation to the different products takes place by simple adjustment of the machine components and is possible without tools.

Depending on the intended use, requirements and industry, we build our labellers in various designs, whereby we always make use of our extensive component library in order to use our modular system concept. Our labelling machines from the FM model series represent a combination or alternative solution for applying one or two side labels to shaped bottles such as shampoo bottles, small canisters, spray bottles on both sides in addition to round products.

Add-on modules:

The labeling machines can be expanded as required with label printing systems such as thermal transfer printing systems, thermal inkjet devices (TIJ), continuous inkjet systems (CIJ) or hot stamping devices. Optional vision systems guarantee quality criteria such as presence, correctness of print data, label placement on your products and make complaints right from the start.

Are you looking for a uniform cross-device print data management tool? - Take a look at our label design and automation tool LabelsPlatform 4

03

Model VRM:

Model

Products

VRM-DS

cylindrical and quadratic products

VRM-RB

cylindrical and quadratic products

VRM-DSRB

cylindrical and quadratic products

Output

up to 50 prod./min

up to 250 prod./min

up to 60 prod./min

VRM-RBpharma - Vial labelling in complete pharmaceutical configuration

Options:

  • TTO Printing unit

  • camera systems

  • product rejection

  • backup labelling

  • rotary table

  • buffer table

  • label rejection

  • lid labelling

  • bottom labelling

  • vision inspection (label presence)

  • addiotnal side labelling of form bottles or cans

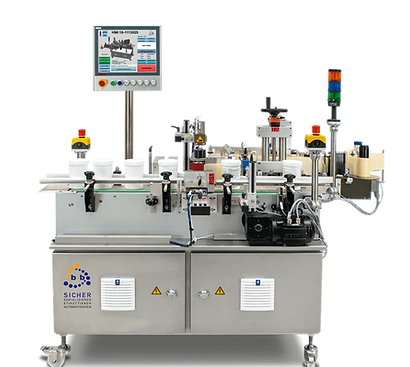

VRM-DS - Jar labelling with product downholder

Video samples:

VRM-DS - Vollautomatische Etikettierung von zylindrischen Produkten
VRM-DS - fully automatic labelling of cylindrical products

VRM-DS - Application video with infeed turntable, thermal transfer printer and collection in tray

VRM-DS 2PA - Vollautomatische Etikettierung von Formflaschen und zylindrischen Produkten
VRM-DS-2PA- Fully automatic labelling of cylindrical products | lid labelling

VRM-DS-2PA - Application video with wrap-around and lid labeler (print modules with thermal transfer foil saving function)

VRM-RBpharma - Fully automatic labelling of vials and bottles
VRM-RBpharma - Fully automatic labelling of vials and bottles

VRM-RBpharma - Labelling of vials of various sizes - Application video with wrap-around labelling, label rejection, product inspection, infeed buffer table and outfeed rotary table, integration of Videojet Dataflex 6530 and vision system

VRM-RBpharma - Fully automatic labelling of vials and bottles
VRM-RBpharma - Fully automatic labelling of vials and bottles

Product examples:


The VRM labelling solution can be used to label a wide variety of products such as bottles, vials, jars, small buckets, cans, cups, deodorant rollers, jars or comparable round or square products.

Important for wrap-around labelling of cans, bottles, vials and other round or square products:

  • High cycle rates for high-consumption products: Our high-performance labelling systems can also be used without any problems in production lines for high-consumption or small-format products.

  • Precise labelling and dispensing accuracy: Even with products with a large diameter that are provided with a long label, there must be no spiral offset during the labelling process.

  • Modular expandability: Our labeling systems are modularly expandable and can also be retrofitted with various options such as a serialization or coding unit.

  • Various fields of application: Bottle labelling, can labelling, vial labelling.

Labels:


Would you like a solution from a single source? We offer you the complete solution for wrap-around labelling of your bottles, cans, vials, glasses or other products. Information about our labels can be found at  www.bb-labels.de.

Application example:

You can find our current projects here.

Another labelling machine for cylindrical products:

Semi-automatic labelling machine for wrap-around labelling

Are you looking for a solution for labelling small to medium-sized batches? The semi-automatic labeling machine TNC-DS is ideally suited for wrap-around labeling of cylindrical products.



Cylindrical products such as honey jars are manually placed in the product turning station and then automatically labelled on the circumference.

> find out more

Fully automatic labelling machine for side and wrap-around labelling of shaped bottles

With the FM labeller, both shaped bottles and cylindrical products can be labelled all round and on the sides. This can be easily implemented by adding a wrap-around module to the system. The labeller can be quickly adapted to other product formats by adjusting the machine components.

> Find out more

You are looking for a turnkey solution to label your products - contact us!
